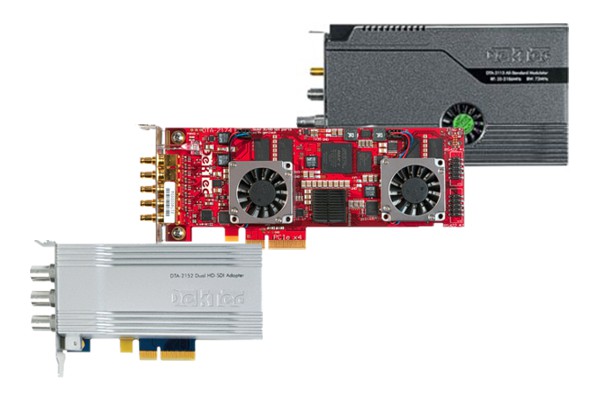

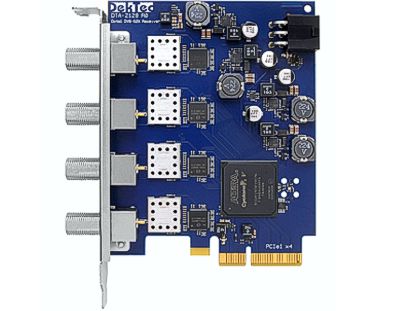

DekTec's extensive portfolio of PCI Express cards provides key I/O and processing functions for digital TV signals carried on any medium: IP, ASI, SDI or RF modulated.

These cards are ideal building blocks in many kinds of PC-based DTV solutions. The scope of applications you can build is only limited by your imagination!



Software Products

DekTec PCI Express Cards

The table below is sorted on type number and shows all active DekTec PCI Express cards. For a list of just modulators (PCIe and USB) please refer to the Modulators section.

DTA-2107 - Multi-Standard Satellite Modulator for PCIe

DTA-2107 – Multi-Standard Satellite Modulator for PCIe

Satellite modulator with support for DVB-S, DVB-S2, ISDB-S, DAB and arbitrary I/Q samples. AWGN insertion is available as an option.

I/O: 1x 75-Ω F-type L-band RF out

DTA-2110 - 10G Network Card Optimized for SMPTE 2110

DTA-2110 – 10G Network Card Optimized for SMPTE 2110

10G network card for Linux/Windows with hardware accelerators for PTP and SMPTE 2110. Comes with the free AvFifo API for creating perfectly synchronized video-over-IP applications with ease.

I/O: 1x 10G SFP+

DTA-2111B - Multi-Standard Cable/Terrestrial Modulator for PCIe

DTA-2111B – Multi-Standard Cable/Terrestrial Modulator for PCIe

Attractively priced cable and terrestrial modulator for various OFDM and QAM standards. Well suited for OEM integration.

I/O: 1x 75-Ω F-type VHF/UHF out

DTA-2115B - All-Standard VHF/UHF/L-Band Modulator for PCIe

DTA-2115B – All-Standard VHF/UHF/L-Band Modulator for PCIe

General-purpose high-end cable, terrestrial and satellite modulator. Programmable output level from -60 to 0dBm. Very low phase noise. Eight-channel firmware option available (8x 8MHz in VHF/UHF).

I/O: 1x 50-Ω SMA RF out; 1x 75-Ω F RF monitor out; 2x BNC 10MHz+1pps ref clock in

DTA-2116 - All-Standard 0-3GHz Modulator for PCIe

DTA-2116 – All-Standard 0-3GHz Modulator for PCIe

Top-of-the-line cable, terrestrial, satellite and arbitrary I/Q modulator. 100MHz bandwidth, programmable output level from -90 to -5dBm. SFN-capable, triggering with subnanosecond precision.

I/O: 1x 50-Ω SMA RF out; 1x 75-Ω F RF monitor out; 2x SMA 10MHz+1pps ref clock in

DTA-2127 - Quad DVB-S2X Receiver with 3G-SDI/ASI Output for PCIe

DTA-2127 – Quad DVB-S2X Receiver with 3G-SDI/ASI Output for PCIe

High-density satellite receiver, ideal for building satellite-to-IP gateways. Use the ASI/SDI output to output an MPEG-2 TS or a decoded channel.

I/O: 2x 75-Ω F-type L-band in; 1x 75-Ω micro-BNC ASI/SDI out

DTA-2131B - Multi-Standard Cable/Terrestrial Receiver for PCIe

DTA-2131B – Multi-Standard Cable/Terrestrial Receiver for PCIe

Software Defined Radio (SDR) receiver with several software demodulators available. Advanced features and measurement capabilities exceeding those of consumer demodulator chips.

I/O: 1x 75-Ω F-type VHF/UHF in

DTA-2132 - High-End Satellite Receiver for PCIe

DTA-2132 – High-End Satellite Receiver for PCIe

DVB-S2/S2X receiver with high-quality measurements, DVB-CID analysis and decoding and raw I/Q sampling.

I/O: 1x 75-Ω F-type L-band in

DTA-2139C - Twelve-Channel Cable/Terrestrial Receiver for PCIe

DTA-2139C – Twelve-Channel Cable/Terrestrial Receiver for PCIe

Next generation of the DTA-2139B with ATSC 3.0 and ATSC 1.0 (8-VSB) added.

I/O: 1x 75-Ω F-type VHF/UHF in

DTA-2142 - Serial and Parallel Port for PCIe

DTA-2142 – Serial and Parallel Port for PCIe

Parallel port for receiving or transmitting 8-bit data with valid and sync at clock rates up to 108MHz. ASI port is lockable to 27MHz clock input.

I/O: 1x parallel port 8-bit @ 108MHz; 1x ASI/SDI in/out; 1x clock in

DTA-2144B - Quad ASI/SD-SDI Ports for PCIe

DTA-2144B – Quad ASI/SD-SDI Ports for PCIe

Four ports, independently programmable as ASI or SD-SDI, and as input or output. Building block for multiplexers, monitoring equipment, etc.

I/O: 4x 75-Ω BNC ASI/SD-SDI in/out

DTA-2160 - GigE and 3x ASI Ports for PCIe

DTA-2160 – GigE and 3x ASI Ports for PCIe

Universal Gigabit Ethernet port and three ASI ports, each independently programmable as input or output. Hardware support for zero-jitter IP playout and IP jitter measurement.

I/O: 1x 1G network port 10/100/1000 (RJ-45); 3x 75-Ω BNC ASI/SDI in/out

DTA-2162 - Dual 1GbE Ports for PCIe

DTA-2162 – Dual 1GbE Ports for PCIe

Dual universal Gigabit Ethernet ports with hardware support for zero-jitter IP playout and IP jitter measurement.
Support for SMPTE 2022-7 network redundancy.

I/O: 2x 1G network port 10/100/1000 (RJ-45)

DTA-2172 - Dual 3G-SDI/ASI Ports for PCIe

DTA-2172 – Dual 3G-SDI/ASI Ports for PCIe

Two 3G-SDI ports, configurable in software as input or output. Both ports support SDI (up to 3G) and ASI. Supported by DekTec Matrix API® 2.0.

I/O: 2x 75-Ω micro-BNC SDI/ASI in/out; 75-Ω micro-BNC genlock in

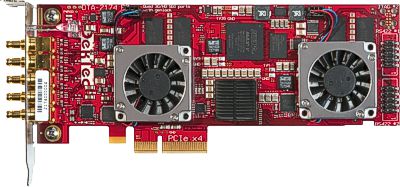

DTA-2174B - Quad 3G-SDI/ASI Ports (1x12G) for PCIe

DTA-2174B – Quad 3G-SDI/ASI Ports (1x12G) for PCIe

Four 3G-SDI ports (port 1 is 12G capable), configurable as input or output, ASI or SDI. 4Kp50/60 support over 12G-SDI or 4x 3G-SDI quad-link.

I/O: 4x 75-Ω micro-BNC SDI/ASI in/out; 75-Ω micro-BNC genlock in

DTA-2175 - HD-SDI/ASI Input and Output with Relay Bypass for PCIe

DTA-2175 – HD-SDI/ASI Input and Output with Relay Bypass for PCIe

General-purpose HD-SDI/ASI input and output, with relay bypass for creating high-availability. Supported by DekTec Matrix API®.

I/O: 1x 75-Ω BNC HD-SDI/ASI in; 1x 75-Ω BNC HD-SDI/ASI out

DTA-2178 - Eight 12G-SDI/ASI Ports for PCIe

DTA-2178 – Eight 12G-SDI/ASI Ports for PCIe

Eight 12G-SDI/ASI ports, each configurable as input or output, ASI or SDI. All 8 SDI/ASI ports can input 12G by scaling to 3G. Ports 1 and 5 can handle full 12G-SDI input or output.

I/O: 8x 75-Ω micro-BNC SDI/ASI in/out; 75-Ω micro-BNC genlock in

DTA-2178-ASI - Octal ASI Ports for PCIe

DTA-2178-ASI – Octal ASI Ports for PCIe

Eight bi-directional ASI ports on a low-profile PCIe card at a price of about 100 per channel. Each port is configurable from software as input or output.

I/O: 8x 75-Ω micro-BNC SDI/ASI in/out; 75-Ω micro-BNC genlock in

DTA-2179 - Twelve 3G-SDI/ASI Ports for PCIe

DTA-2179 – Twelve 3G-SDI/ASI Ports for PCIe

Twelve independent HD-SDI/ASI ports, each configurable in software as input or output, and as ASI or SDI port. Supported by DekTec Matrix API®.

I/O: 12x 75-Ω DIN SDI/ASI in/out; 75-Ω DIN genlock in

DTA-2195 - 12G-SDI Input and Output with HDMI 2.0 for PCIe

DTA-2195 – 12G-SDI Input and Output with HDMI 2.0 for PCIe

12G-SDI capturing and 12G-SDI output with HDMI 2.0 monitoring port.

I/O: 3x 75-Ω BNC; 1x HDMI 2.0 type A receptacle

Older PCIe Products Still Available in Limited Quantities

The PCIe products listed below are no longer in production, but they are still actively supported in DekTec applications, SDK and drivers.
Please contact DekTec for more information, we may be able to offer you an attractive price!

DTA-2136 - Dual QAM-A/B/C Receiver for PCIe

DTA-2136 – Dual QAM-A/B/C Receiver for PCIe

Dual QAM receiver for J.83 annex A (DVB-C), B and C. The received transport stream is available on PCIe and on two ASI monitoring ports.

I/O: 2x 75-Ω F-type VHF/UHF in; 2x 75-Ω BNC ASI out

DTA-2138B - Single-Channel Cable/Terrestrial Receiver for PCIe

DTA-2138B – Single-Channel Cable/Terrestrial Receiver for PCIe

VHF/UHF receiver for DVB-T/T2, DVB-C/C2 and ISDB-T. Supports T2 Lite (DVB-T2 v1.3.1). Hardware-based demodulation with 0% CPU load.

I/O: 1x 75-Ω F-type VHF/UHF in

DTA-2139B - Twelve-Channel Cable/Terrestrial Receiver for PCIe

DTA-2139B – Twelve-Channel Cable/Terrestrial Receiver for PCIe

Twelve receivers on a single card, supporting any mix of cable (DVB-C, ITU J.83) and terrestrial (DVB-T, DVB-T2, ISDB-T) signals.

I/O: 1x 75-Ω F-type VHF/UHF in

DTA-2145 - ASI/SD-SDI Input and Output with Relay Bypass for PCIe

DTA-2145 – ASI/SD-SDI Input and Output with Relay Bypass for PCIe

Two ASI/SD-SDI ports, configurable as input+output with relay bypass, or as dual outputs.

I/O: 1x 75-Ω BNC ASI/SD-SDI in/out; 1x 75-Ω BNC ASI/SD-SDI out

DTA-2180 - H.264 HD Encoder for PCIe

DTA-2180 – H.264 HD Encoder for PCIe

H.264 HD encoder taking zero CPU cycles. HDMI input for compressing the PC's desktop and distributing it over IP.

I/O: 75-Ω BNC HD-SDI in; HDMI 1.4a in; 75-Ω BNC ASI out

DTA-2182 - Dual H.264 HD Encoder for PCIe

DTA-2182 – Dual H.264 HD Encoder for PCIe

High-density encoding with two H.264 HD encoders on a compact PCIe card.

I/O: 2x 75-Ω BNC HD-SDI in; 2x 75-Ω BNC ASI out
