DTU-245 - FantASI ASI/SD-SDI Input and Output for USB-2

DTU-245

FantASI ASI/SD-SDI Input and Output for USB-2

DekTec's classic and iconic portable ASI adapter for USB bus, ideally suited for use with a laptop, but convenient with a standard PC or server too.
More than ten years on the market and still a great tool for every DTV engineer!



Key Characteristics

DVB-ASI EN50083-9 (coax)
0 to 160 Mbps (full-duplex)
0 to 214 Mbps (half-duplex)
SD-SDI SMPTE 259M
270 Mbps
8 or 10 bit
Buffering 16MB for input channel
16MB for output channel

Inputs and Outputs

ASI/SDI in 1x 75-Ω BNC input
1x 75-Ω BNC output

PC Support

PC USB port USB 2.0
OS Windows 10, 11
Windows Server 16, 19, 22
Linux ≥2.6.18, 3.x, 4.x, 5.x
Processor Core i5 minimum
Core i7 recommended

Or equivalent AMD CPUs

Software

StreamXpress Playout TS- and SDI files
StreamXpert Our industry-standard transport-stream analyzer
SdEye SDI analyzer for detailed inspection of audio, video and ancillary data
VF-REC SDI/TS recorder with looping, scheduling and more
DekTec SDKs Create your own application

Pricing

DTU-245B-SLP1.972Stock: 25+
FantASI ASI/SD-SDI input and output for USB-2 with StreamXpert Lite and StreamXpress player software.
DTU-245B-SXP3.098Stock: 25+
FantASI ASI/SD-SDI input and output for USB-2 with StreamXpert analyzer and StreamXpress player software.
DTU-245B-SY-SXP3.920Stock: 25+
FantASI ASI/SD-SDI input and output for USB-2 with SdEye and StreamXpert analyzer and StreamXpress player software.
DTU-245B-VR-SY-SXP4.799Stock: 25+
FantASI ASI/SD-SDI input and output for USB-2 with VF-REC stream recorder, SdEye and StreamXpert analyzer and StreamXpress player software.

Prices exclude applicable sales tax, shipping charges and customs duties. Quantity discounts may be available, please request a quotation.

Features

  • General-purpose USB adapter with an independent ASI input- and output port. Supports SD-SDI input or output, too.
  • Seamlessly runs DekTec's industry-standard StreamXpress player, StreamXpert analyzer and SdEye for in-depth SDI analysis.
  • No power supply required: A single USB connection supplies power, real-time data and control.

Applications

  • Compact USB adapter for capturing, analyzing and generating, ASI or SD-SDI digital-video streams.
  • Convenient way to add ASI connectivity to your PC or laptop. Use it with DekTec standard software or with your own application.
  • Great as portable demo set, on-site recording and analysis of transport streams, debugging of MPEG-2 equipment, etc.

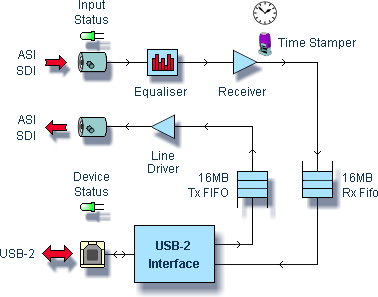

Block Diagram

DTU-245 block diagram
