DTA-2132 - High-end satellite receiver for PCIe

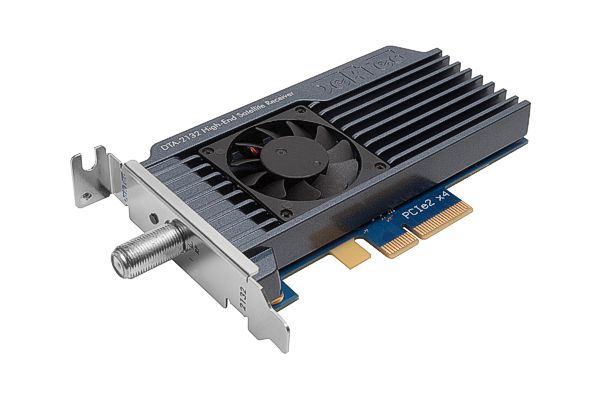

DTA-2132

High-end satellite receiver for PCIe

Professional-grade satellite receiver card with high-quality RF measurements.
Ideal for satellite monitoring, modulator testing and high-speed data distribution.
The card comes with full decoding and analysis of DVB Carrier ID (DVB-CID).



Key Characteristics

RF frequency L band
950 to 2150MHz
Constellation Up to 256APSK/APSK-L
Symbol rate Up to 72MBd
Data rate Up to 425Mbps
Measurements RF level: -80 to -20dBm
MER: 3 to 35dB
Constellation diagram

Inputs and Outputs

RF in 75-Ω F female
PCI Express PCIe gen2 x4

Modulation Standards

Included with base product DVB-S2
DVB-S2X
DVB-CID
I/Q sample capturing

PC Support

OS
Windows2k8/12/16
 7, 8, 10
Linux  ≥2.6.18, 3.x, 4.x
CPU Core i7-4xxx or above

Or AMD equivalent

Software

StreamXpert Our industry-standard transport-stream analyzer
DekTec SDKs Create your own application

Pricing

DTA-21321.675
High-end satellite receiver for PCIe with support for DVB-S2/S2X and DVB-CID.

Part of the DekTec-for-Developers range of PC I/O cards. Attractive OEM arrangements are available, please contact DekTec to discuss your options.

DTA-2132-SX2.650
High-end satellite receiver for PCIe with StreamXpert stream analyzer software. DVB-CID decoding and analysis is included.

Prices exclude applicable sales tax, shipping charges and customs duties. Quantity discounts are available, please request a quotation.

Features

  • FPGA-based DVB-S2/S2X demodulator (no CPU cycles consumed) with calibrated channel-power and MER measurement.
  • Supports VCM, ACM, MIS (multiple input streams), GS (generic stream) with access to baseband frames (BBFRAMEs) in L.3 format.
  • Hardware demodulator can be bypassed to obtain I/Q samples for recording or SDR.

Applications

  • Creating comprehensive satellite-network monitoring solutions for DVB-S2 and DVB-S2X.
  • Decoding and analysis of single or multiple DVB-CID signals, even when the satellite carrier interferes with other carriers.
  • Validation of DVB-S2/S2X/CID modulators.
  • High-speed satellite data distribution.

Block Diagram

The main path of the DTA-2132 consists of a wide-band L-band tuner, 12-bit I/Q analog-to-digital converter, DVB-S2/S2X demodulator and decoder, L.3 packetizer, FIFO, DMA controller and PCIe interface. Constellation points are sampled after the demodulator, while LDPC error-rate and other statistics are gathered after the decoder.

Block diagram of the DTA-2132

A secondary I/Q path is used for multiple purposes: estimating the spectral characteristics of the input signal, DVB-CID demodulation, and sending I/Q samples to a user-space application for SDR, recording or other purposes. A third path low-pass filters the I- and Q samples and estimates the signal power, corrected by calibration tables.

The DTA-2132 also contains an 18V/600mA LNB power inserter with over-current protection, as well as a DiSEqC-2.0 22-kHz LNB-control signal inserter. Finally, a temperature monitoring unit controls fan speed to keep the board cool.
