PCI Cards

PCI Cards

The PCI bus has been largely overtaken by PCI Express, introduced in 2004. DekTec has been very successful in vending a range of PCI cards, most of which are still available. All functions are now also available on PCI Express, generally with improved specifications.



Software Products

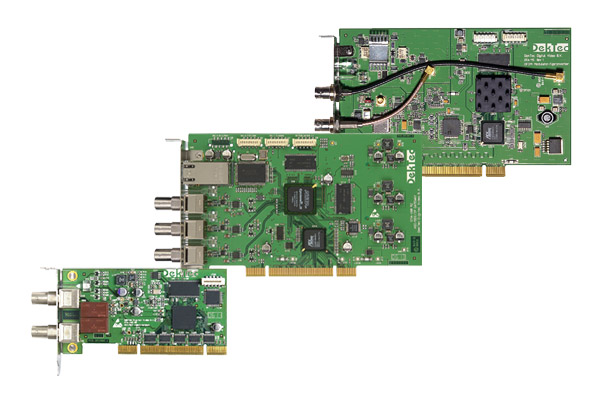

DekTec PCI Cards

The PCI products listed below are no longer in production, but they are still actively supported in DekTec applications, SDK and drivers.
Please contact DekTec for availability and pricing information.

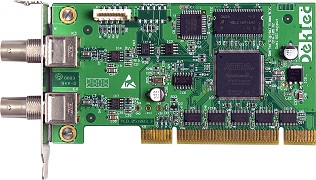

DTA-105 - Dual DVB-ASI Output for PCI

DTA-105 – Dual DVB-ASI Output for PCI

DekTec's two-ports ASI output adapter, with slave-capabilities to output a single doubly-buffered output to two ports.

I/O: 2x BNC ASI output

DTA-107 - Satellite Modulator for PCI

DTA-107 – Satellite Modulator for PCI

DekTec's PCI modulator for satellite, ready for direct generation of DVB-S or DVB-S2 signals. It has a programmable output level up to -27dBm (DVB-S) and support for a wide band, with symbol rates up to 45MBd.

I/O: 2x 75-Ω F-type L-band out

DTA-111 - Low-Cost Cable/Terrestrial Modulator for PCI

DTA-111 – Low-Cost Cable/Terrestrial Modulator for PCI

Low-Cost VHF/UHF Modulator for PCI Bus.

I/O: 1x 75-Ω F-type RF out

DTA-112 - ATSC/DVB-T/QAM VHF/UHF Modulator for PCI

DTA-112 – ATSC/DVB-T/QAM VHF/UHF Modulator for PCI

Cost-effective variant of DTA-115 with 75-Ω BNC main output and support for ATSC, QAM-A/B/C and DVB-T.

I/O: 1x 75-Ω BNC RF out; 1x 75-Ω F RF monitor out; 1x 75-Ω BNC ASI in/out

DTA-115 - Multi-Standard Cable/Terrestrial Modulator for PCI

DTA-115 – Multi-Standard Cable/Terrestrial Modulator for PCI

DekTec's PCIe modulator for most QAM-, OFDM- and VSB-based modulation standards. The DTA-115 has a programmable output level with perfect signal quality.

I/O: 1x 50-Ω BNC RF out; 1x 75-Ω F RF monitor out; 1x 75-Ω BNC ASI in/out

DTA-145 - ASI/SD-SDI Input and Output for PCI

DTA-145 – ASI/SD-SDI Input and Output for PCI

DekTec's bi-directional dual ports ASI/SDI adapter, with genlock and watchdog-controlled input-to-output relay for redundant configuration.

I/O: 1x 75-Ω BNC ASI/SD-SDI in/out; 1x 75-Ω BNC ASI/SD-SDI output

DTA-160 - GigE and 3x ASI Input/Output for PCI

DTA-160 – GigE and 3x ASI Input/Output for PCI

DekTec's Gigabit Ethernet adapter with three ASI/SDI ports, allowing zero-jitter transmission and reception of Transport Streams over IP networks; the additional three ASI ports allow easy conversion between the two interface types.

I/O: 1x RJ-45 GigE (10/100/1000); 3x 75-Ω BNC ASI/SDI in/out
