DTA-2139 - Twelve-channel cable receiver for PCIe

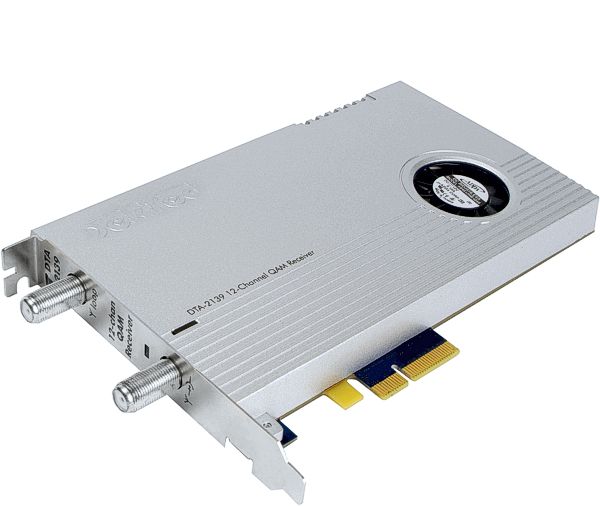

DTA-2139

Twelve-channel cable receiver for PCIe

Twelve (!) cable receivers on a single PCIe card, supporting J.83 Annex A, B and C.
All twelve transport streams are demodulated simultaneously, allowing you to monitor a complete cable network in real time.

For new designs, DekTec recommends the DTA-2139B, which has improved RF performance and supports terrestrial standards including DVB-T2 and ISDB-T.



Key Characteristics

#Receivers 12
Tuning range 54 to 1002MHz  (VHF, UHF)
Bandwidth 8MHz per channel
Input sensitivity -55 to -30dBm
MER 12 to 38dB  (measurement range)

Inputs and Outputs

RF in 75-Ω F female
Loop through 75-Ω F female
PCI Express PCIe gen1 x4

Modulation Standards

Cable DVB-C  (QAM-A)
QAM-B  (ITU J.83 B)
QAM-C

All modulation standards are included in the base product; no options need to be purchased.

PC Support

OS
Windows2k8/12/16
 7, 8, 10
Linux  ≥2.6.32, 3.x, 4.x
Processor Core i5 minimum
Core i7 recommended

Or equivalent AMD CPUs

Software

StreamXpert Our industry-standard transport-stream analyzer
VF-REC SDI/TS recorder with looping, scheduling, JPEG-2000 compression and more
Xpect Mosaic 24/7 real-time monitoring of multiple transport streams
DekTec SDKs Create your own application

Pricing

DTA-2139-SL2.585
Twelve-channel cable receiver for PCIe with StreamXpert Lite software.
DTA-2139-VR-SL3.297
Twelve-channel cable receiver for PCIe with VF-REC stream recorder and StreamXpert Lite software.
DTA-2139-SX3.445
Twelve-channel cable receiver for PCIe with StreamXpert 2.1 stream analyzer software.
DTA-2139-X487.800
Twelve-channel cable receiver for PCIe with 48 Xpect points for full in-depth monitoring of all 12 QAM channels.

Prices exclude applicable sales tax, shipping charges and customs duties. Quantity discounts are available, please request a quotation.

Features

  • Twelve independently-tunable cable tuners and twelve demodulators, each outputting the full transport stream.
  • Each receiver provides an indication of lock status, RF level and MER for that channel.

Applications

  • 24/7 continuous compliancy monitoring of an entire cable network, using Xpect Mosaic or another monitoring solution.
  • Creating a mosaic of all services on a cable network.

Block Diagram

The RF input is split into a loop-through (available on a connector) and - after amplification - a signal feeding three tuners, each of which has three outputs routed again to three tuners. Each receiver channel consists of a chip tuner, chip demodulator and an optimized DMA controller.

DTA-2139 block diagram

Related Products

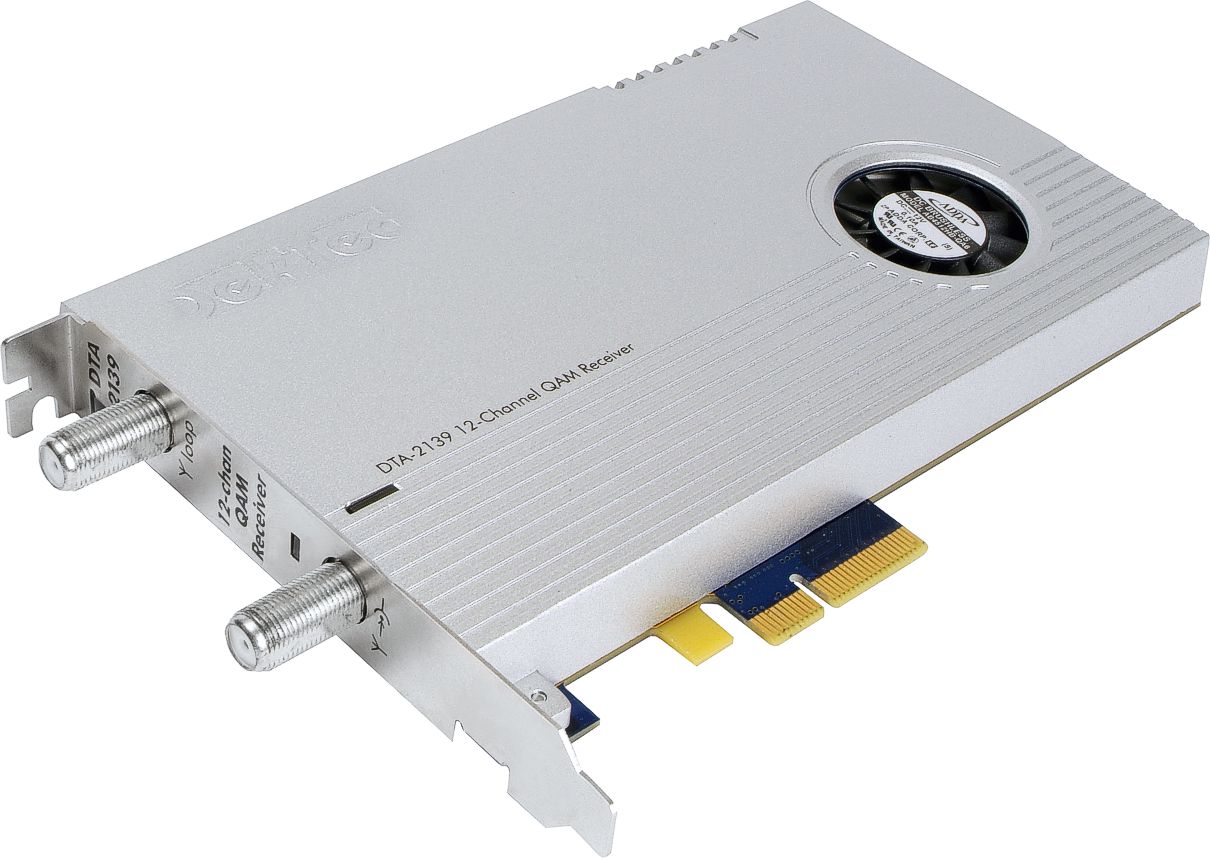

DTA-2139 Bird's Eye View
