VF-REC - Advanced TS/SDI/4K recording software

VF-REC

Advanced TS/SDI/4K recording software

Feature-rich recording of transport streams (ASI/IP/RF) and SDI (SD/HD/3G/12G).
Even full UHD (4Kp50/60) can be stored on a PC's hard disk with JPEG-2000 lossless compression. The web-based GUI allows control of multiple simultaneous recordings.



Key Characteristics

SDI recording SD, HD, 3G, 12G

Up to 4Kp50/60

TS recording DVB-ASI
TS over IP
RF: DVB-T2, ISDB-T, ...
Features Scheduled recording
File merging tool
Multiple stream recording
JPEG 2000 compression

Lossless mode and MXF supported

Supported Adapters - SDI

HD-SDI DTA-2152, 2174, 2179
DTA-2195, DTU-351
3G-SDI DTA-2174, 2179, 2195
4K UHD DTA-2174, 2179, 2195

Up to 4Kp50/60 with JPEG 2000
over 12G- or quad-link 3G-SDI

Supported Adapters - TS

DVB-ASI DTA-2144B, 2145, 2160
DTA-2152, 2174, 2179
DTE-3120, DTU-245
TS over IP DTA-160, 2160, 2162
PC network port (local NIC)

Supported Adapters - RF

ATSC 8-VSB DTA-2131, DTU-236A
DAB-ETI DTA-2131
DVB-C/C2 DTA-2131, 2138B
DVB-S/S2 DTA-2137
DVB-T/T2 DTA-2131, 2138B
I/Q samples DTA-2131
ISDB-T DTA-2131
QAM DTA-2136, 2138B, 2139
DTU-236A
T2MI DTA-2131

PC Support

OS Windows 7, 8, 10

64-bit only

Processor Core i5 minimum
Core i7 recommended

Or equivalent AMD CPUs

GPU Required for JPEG 2000

Check manual for recommendations

Pricing

DTC-316-VR475
VF-REC - Advanced hard disk recording software for SDI (SD/HD/3G/12G) up to 4Kp50/60 and transport-streams (ASI/IP/RF).
DTC-317-J2K1.500
JPEG-2000 compression option for recording of (up to) 4Kp50/60 in MXF (OP1a) file format. Lossless compression supported. Suitable GPU required.

Prices exclude applicable sales tax, shipping charges and customs duties. Quantity discounts are available, please request a quotation.

Features

  • General-purpose recording of any compressed or uncompressed DTV signal to your PC's hard drive, or to a server disk array.
  • Several user-friendly features enable you to handle the high bit rates and data volumes associated with digital TV streams with ease.
  • The web-based GUI allows the control of multiple simultaneous recording processes from any PC in the network.

Applications

  • Recording and playback of 4Kp50/60 streams at extremely high quality with JPEG-2000 lossless compression and decoding. Ideal for demos and development of 4K equipment.
  • Advanced fault finding: Making long- or circular (e.g. last day) recordings for later off-line analysis.
  • 24/7 archiving of broadcast signals for compliance purposes.

Screenshots

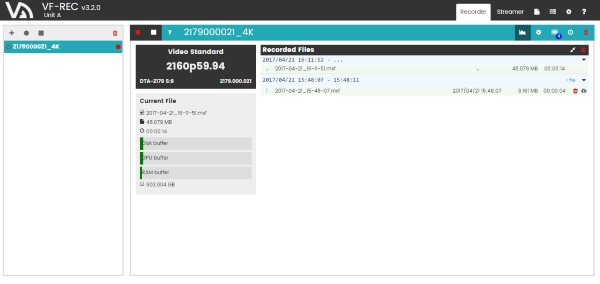

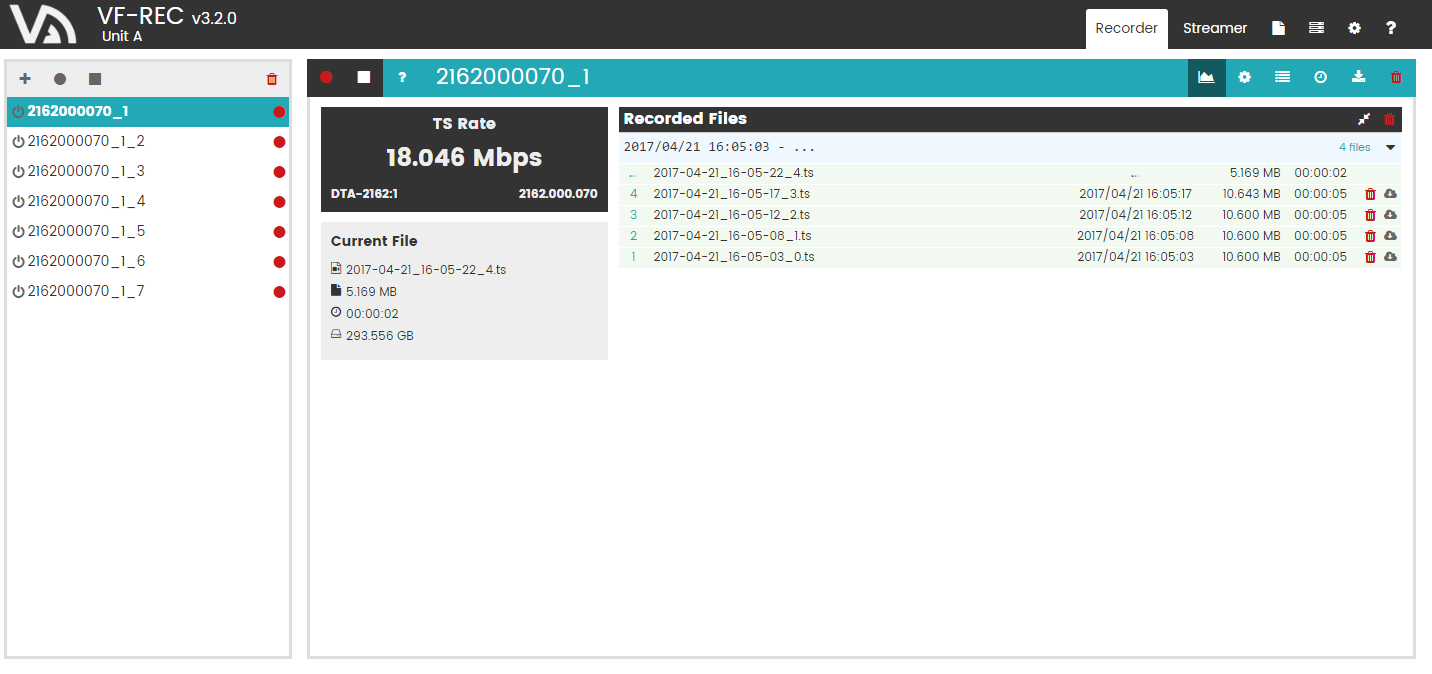

  • VF-Rec screenshot 1

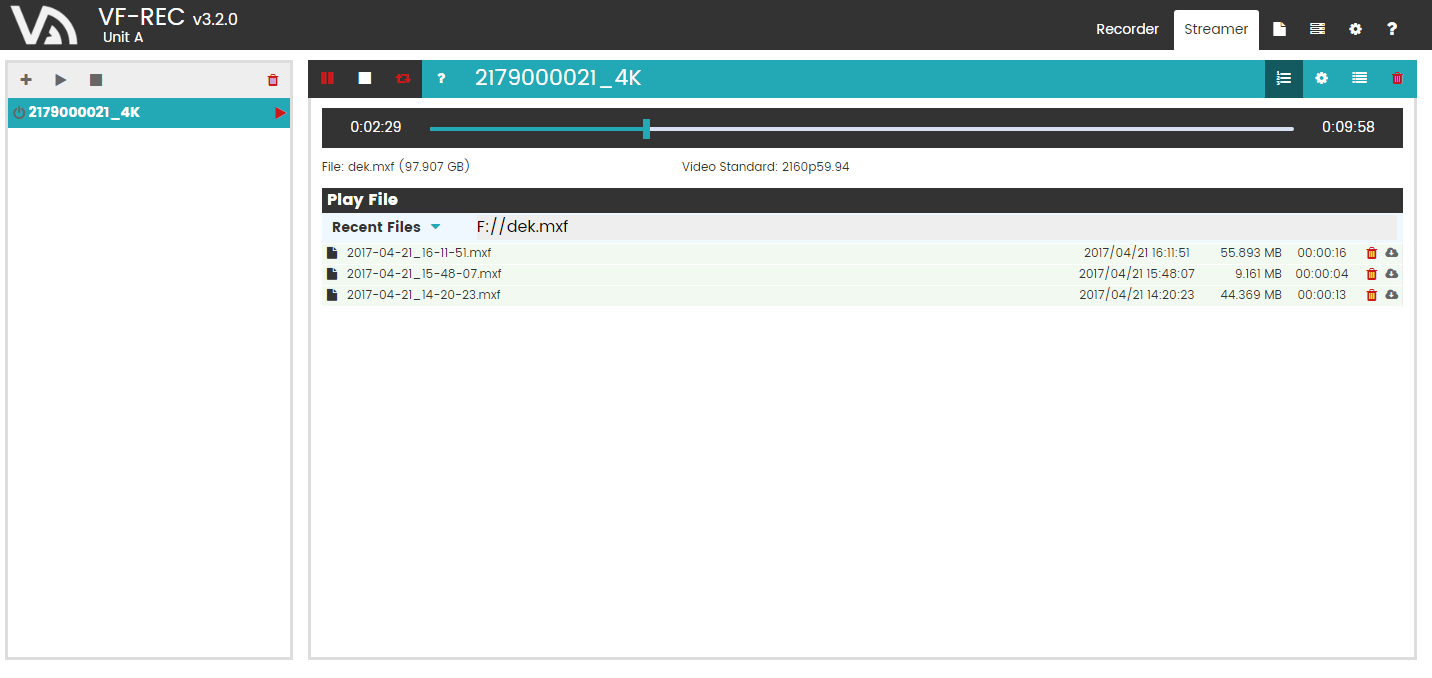

  • VF-Rec screenshot 2

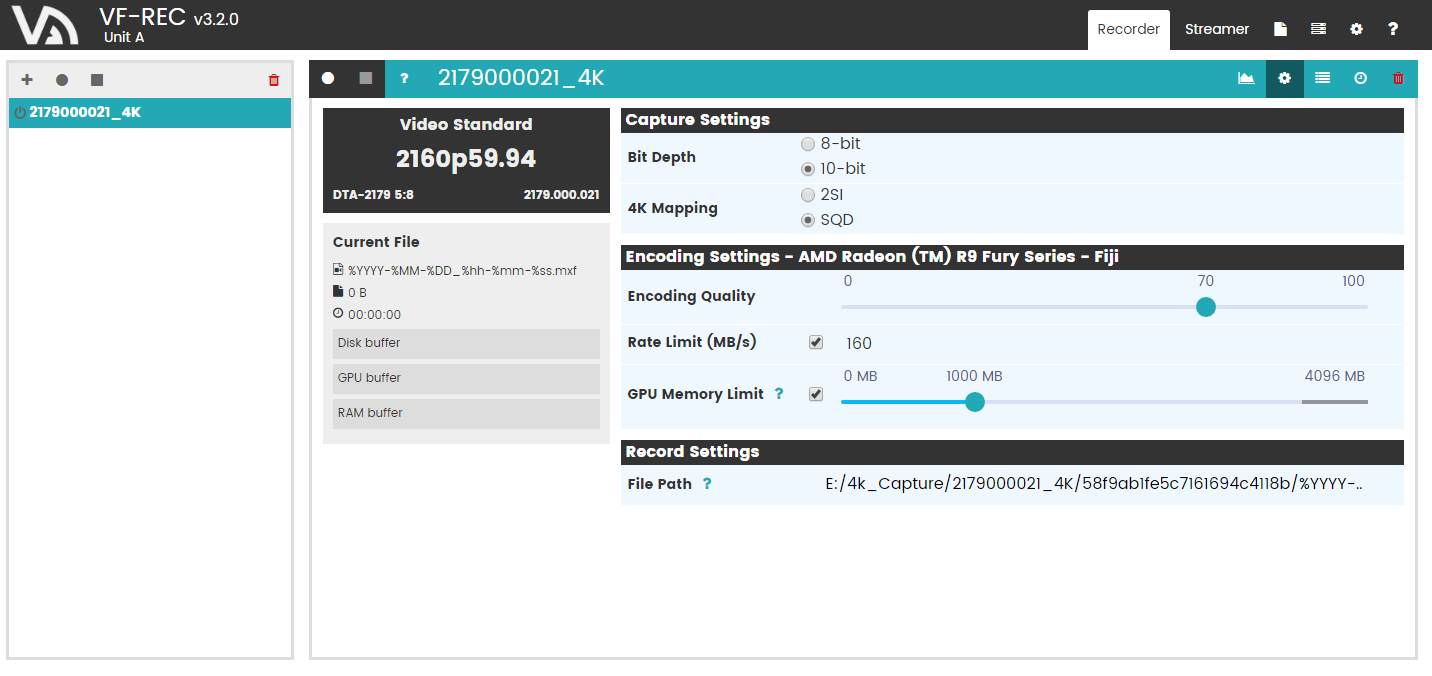

  • VF-Rec screenshot 3

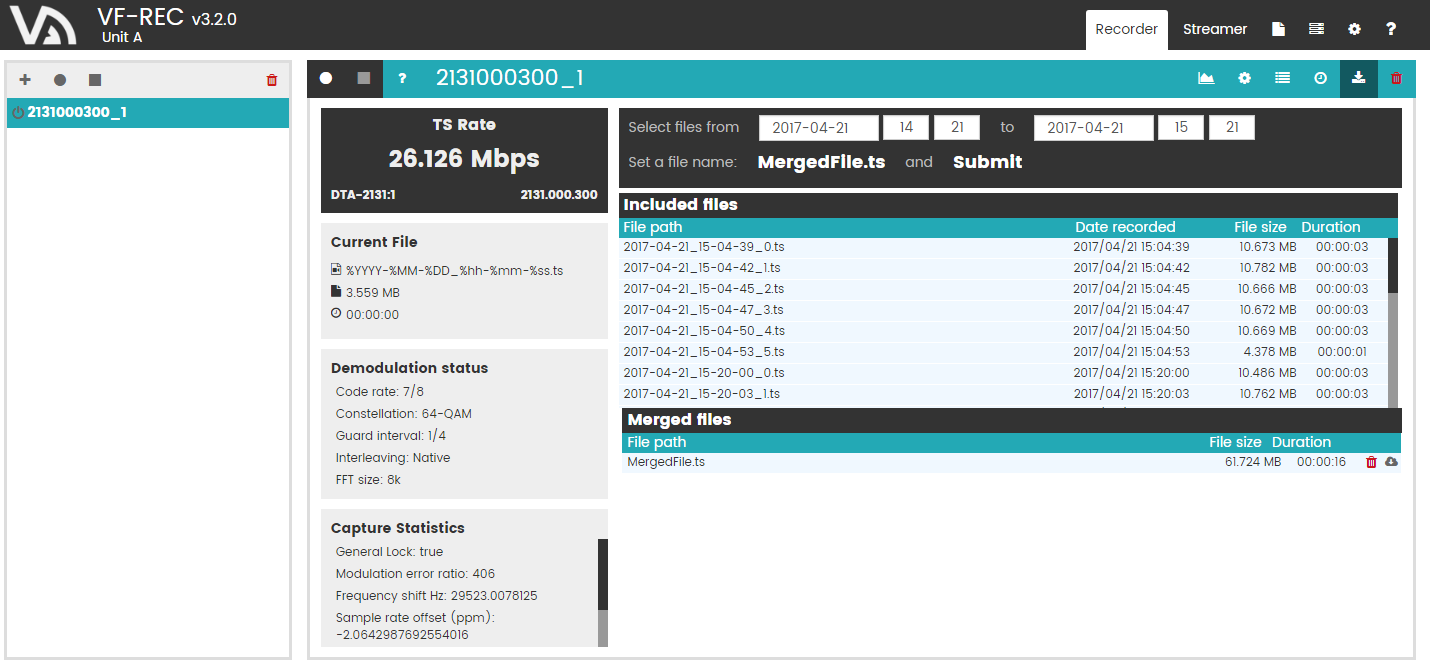

  • VF-Rec screenshot 4

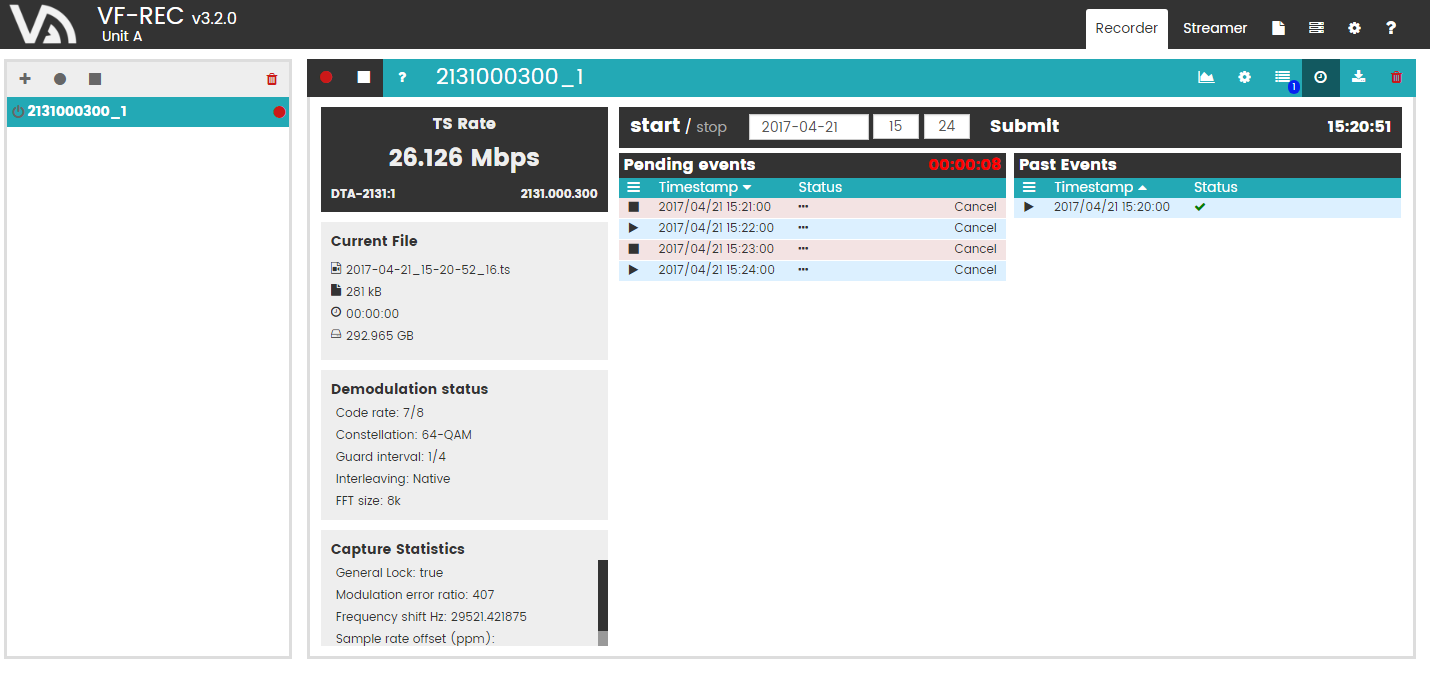

  • VF-Rec screenshot 5

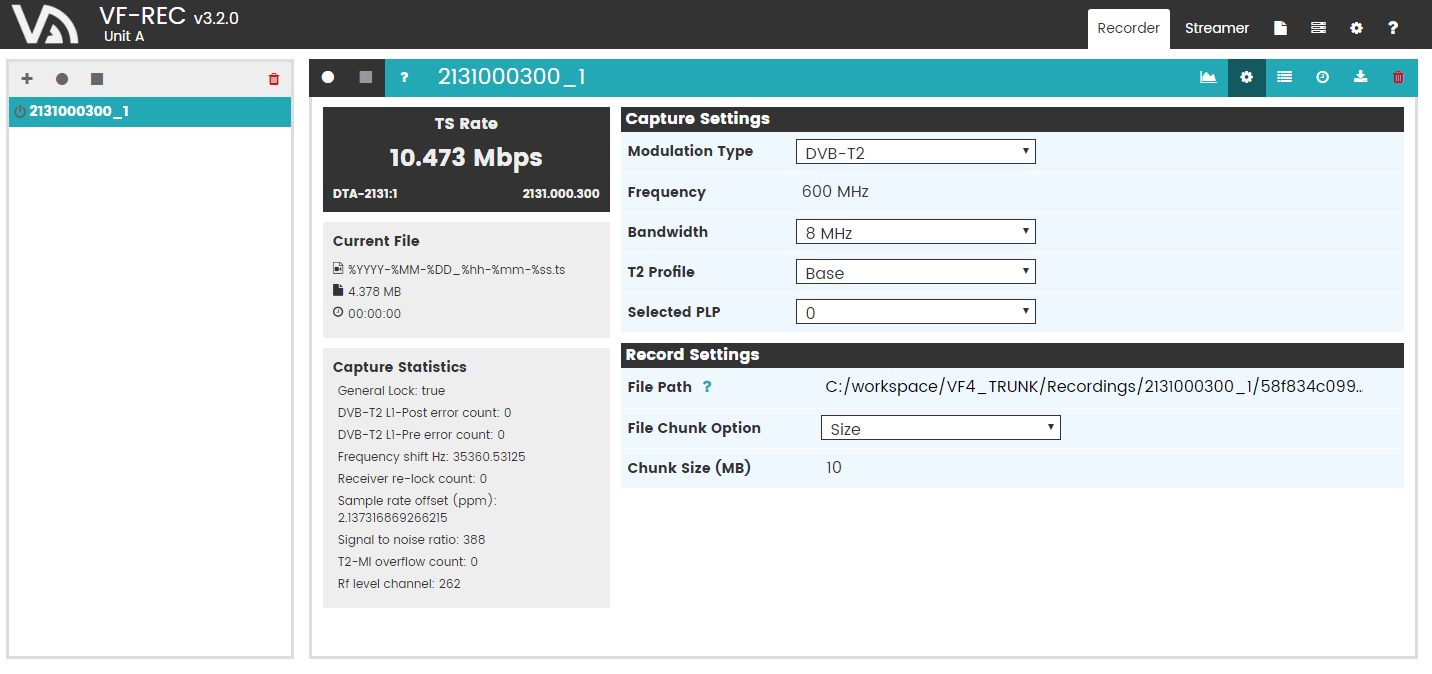

  • VF-Rec screenshot 6
