OEM Modules

OEM Modules

DekTec's standalone OEM modules are ideal building blocks for integration in your product. You do not need to dive into the complex world of IP, DekTec has done this for you.

Several serial protocols are supported for control of the OEM modules from your application. A free C/C++ API is available to handle the low-level command protocol.



Hardware Products

DekTec products categorized per bus.

Software Products

DekTec software can be divided in desktop applications for end-users, and drivers and SDKs for developers.

Products per Function

List of DekTec OEM Modules

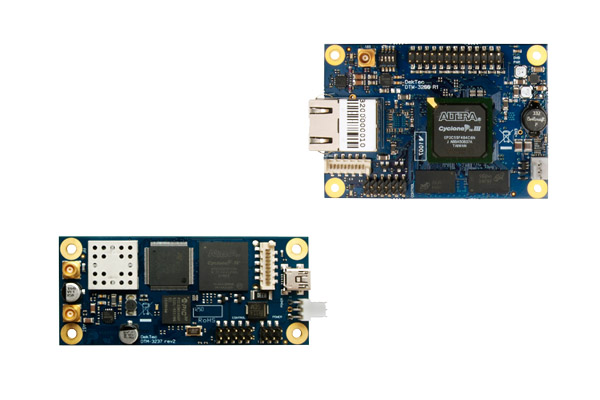

DTM-3200 - OEM module for conversion between IP and ASI

DTM-3200 – OEM module for conversion between IP and ASI

Compact module for interfacing transport streams to a network. The DTM-3200 converts either IP to ASI or ASI to IP (user programmable).

I/O: 1GbE network port; 1x ASI input+output port
Control: Serial via RS-232/422/485 or I2C

DTM-3200-RA - DTM-3200 with right-angle connectors

DTM-3200-RA – DTM-3200 with right-angle connectors

Same as DTM-3200, but with right-angle headers, to reduce the total height of the unit.

DTM-3224 - Quad ASI to IP conversion module

DTM-3224 – Quad ASI to IP conversion module

High-density standalone module for interfacing four ASI transport streams to a network.

I/O: 1GbE network port; 4x ASI input port
Control: Serial via USB, I2C or RS-232

DTM-3237 - OEM DVB-S2 receiver with ASI output

DTM-3237 – OEM DVB-S2 receiver with ASI output

Compact module for receiving a full DVB-S2 or DVB-S transport stream and outputting it as ASI.

I/O: 75-Ω F-type L-band RF in; 75-Ω MCX-type ASI output
Control: Serial via USB, I2C or LVTTL
