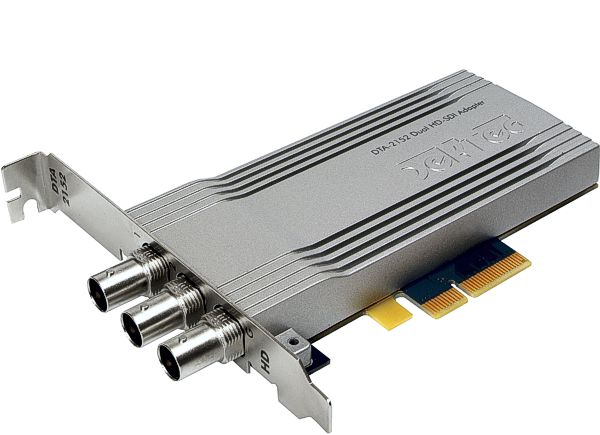

DTA-2152 - Dual HD-SDI/ASI Ports for PCIe

DTA-2152

Dual HD-SDI/ASI Ports for PCIe

DekTec's bi-directional dual ports ASI/SD-SDI/HD-SDI adapter, with bi-level and tri-level genlock support and an on-board hardware video scaler.

PDF
DTA-2152 Product
Discontinuance Notice

The DTA-2152 is an obsolete product that is no longer in production. It is still supported and available in small quantities, but for new designs, DekTec recommends to use the DTA-2172.



Key Characteristics

SD-SDI SMPTE 259M
270 Mbps
8 or 10 bit format
HD-SDI SMPTE 292M
1.5 Gbps
8 or 10 bit format
ASI DVB-ASI (coax) EN50083-9
0 to 214 Mbps
Resolution <1 bps
Buffer 32MB/channel
Input return loss >15dB

Inputs and Outputs

2x ASI/SDI 75-Ω BNC
Genlock 75-Ω BNC
PCI Express PCIe x4

Supported Video Format

SMPTE 259M 525i, 625i
SMPTE 296M 720p23.98, 720p24, 720p25, 720p29.97, 720p30, 720p50, 720p59.94, 720p60
SMPTE 274M 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080i50, 1080i59.94, 1080i60

PC Support

OS Windows 10, 11
Windows Server 16, 19, 22
Linux ≥2.6.18, 3.x, 4.x, 5.x
Processor Core i5 minimum
Core i7 recommended

Or equivalent AMD CPUs

Software

StreamXpress Play TS files and control modulation parameters
SpRcApi StreamXpress remote control API for automated playout
StreamXpert Analyze your received transport streams using our analyzer software
SdEye Advanced SDI signal monitoring software
VF-REC Advanced Transport-Stream/SDI Recorder
DekTec SDKs Create your own full-custom application with the DTA-2152

Pricing

DTA-2152-SLP1.275Stock: 25+
Dual HD-SDI/ASI ports for PCIe with StreamXpert Lite and StreamXpress player software.
DTA-2152-SXP2.401Stock: 25+
Dual HD-SDI/ASI ports for PCIe with StreamXpert analyzer and StreamXpress player software.
DTA-2152-SY-SXP3.223Stock: 25+
Dual HD-SDI/ASI ports for PCIe with SdEye and StreamXpert analyzer and StreamXpress player software.
DTA-2152-VR-SY-SXP4.102Stock: 25+
Dual HD-SDI/ASI ports for PCIe with VF-REC stream recorder, SdEye and StreamXpert analyzer and StreamXpress player software.

Prices exclude applicable sales tax, shipping charges and customs duties. Quantity discounts may be available, please request a quotation.

Features

  • Two independent software controllable bi-directional BNC ports, operable in ASI, SD-SDI or HD-SDI mode, with individual status LEDs.
  • Analogue genlock input port accepts bi- and tri-level synchronization signals.
  • Full-frame capture and play-out, but capturing a 1/4 or 1/16 hardware scaled resolution is also possible.

Applications

  • General purpose HD-SDI processor, recorder and player.
  • Video encoding and transcoding.
  • Key and fill generators.

DekTec Matrix API

  • Organizes incoming HD-SDI data in a matrix of frame buffers, so that frames can be accessed as a function of port number and time.
  • Synchronization of multiple input streams is straightforward: Frames with the same arrival time are stored in the same column.
  • Read or write to individual lines, HANC, VANC or full frame.
  • Access functions for embedding or de-embedding audio or other ANC data.
  • Supports all 16-audio channels.
  • Integrated and fully compatible with DTAPI.
